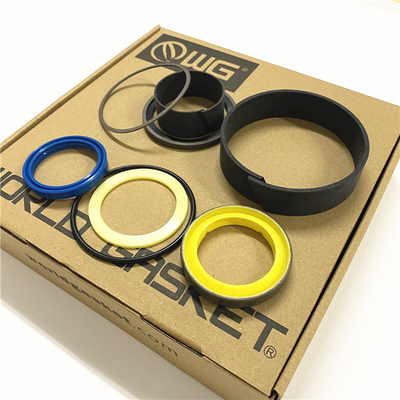

Kit  2095874 / Aftermarket Hydraulic Cylinder Seal Kit
100 mm Rod & 140 mm Bore|| Equipment Type: Excavators||Compatible Equipment Models: 320C, 320C L, 320C LN, 320C S and More||Typical Hydraulic Appliion: Stick||Fits Cylinder Models: 1589059, 1589060 and More

2146321 Aftermarket Hydraulic Cylinder Seal Kit by Kit King USA
Kit King USA Meets or exceeds OEM specifiions || Provides great performance and wear life || For professional and reliable cylinder repairs || Entire kit is paired for your appliion || Authentic aftermarket seals by Kit King USA
