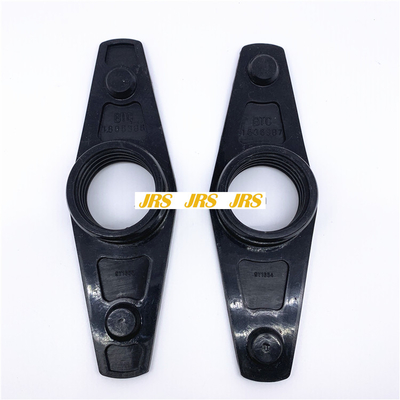

9Y1655 9Y1654 1606387 1606386 D7 D8 D9 D12 LIFT TIFT STEERING 966C for loader Hydraulic Cylinder Seal

9Y1655 9Y1654 1606387 Hydraulic Cylinder Seal For 966C

9Y1655 9Y1654 1606387 1606386 D7 D8 D9 D12 LIFT TIFT STEERING 966C for loader Hydraulic Cylinder Seal

9Y1655 SEAL-END TANK parts 16G, 3176B, 621E, 621F, 623E, 623F, 627E, 627F, 631E, 633E II, 637E, 65, 65C, 69D, 75, 75C, 75D, 769D, 771D, 777B, 784B, 785, 785B, 789, 793, 793B, 793C, 814B, 916, 926, 936, 950B, 950F, 966D, 966F, 9... SEAL

Quick detail of Hydraulic Cylinder Seal Kits

Size: customized

Model Number: Customized

Product name: Hydraulic piston ring oil-resistant cylinder seal kit

Type: seal kit

Material: rubber

Color: yellow,green,black , orange

Medium: lubriing oil, grease, water, etc.

Temperature: - 35~220°C

Pressure: 0~0.05MPa

Appliion: cylinder

Hydraulic Cylinder Seal Kits Description

Seal kits. In Aftermarket world, the custom-made sealing kits are some of the main components in various parts. Among those who purchase these types of parts are industrial vehicle, hydraulic equipment and pneumatic equipment manufacturers.

Specifiion of Hydraulic Cylinder Seal Kits

GK9001V Fits Folded Core Gasket 9Y1655 Viton Material
Reliable Aftermarket Parts Our Name Says It All OEM Numbers Are Provided for Reference Only. Please Verify Fit Prior To Ordering. || Stock Varies by Warehouse - Please Refer to Estimated Delivery Time for Most Accurate Shipping Info || Please Note: Some Listings Use Stock Images for Reference and May Differ from the Actual Product. || This Aftermarket Part Is Made to Meet or Exceed Manufacturer (OEM) Specifiions. || Hassle-Free Returns Offered on Most Items

Illustration 1 g06135767
Table 1
Specifiion for 488-5894 Water Pump Gp
Item Qty Part Specifiion Description
B 1 336-2212 Water Pump Seal As Height of the water pump seal assembly after installation is 9.90 0.38 mm (0.390 0.015 inch).
1 1 229-5472 Bearing Locknut Torque to 300 30 N m (221 22 lb ft).
Use the following procedure to tighten the set screws for the bearing locknut :
1. Tighten the set screws in 180 degrees pattern to 4.00 1.25 N m (35.40 11.06 lb in).
2. Again, tighten the set screws in 180 degrees pattern to 7.2 0.2 N m (63.7 1.8 lb in).
2 1 493-9610 Impeller Bore in the impeller for new shaft is 25.344 0.012 mm (0.9978 0.0005 inch).
3 1 493-9609 Pump Shaft Diameter of the pump shaft for impeller is 25.400 to 25.410 mm (1.0000 to 1.0004 inch).
Lubrie the shaft lightly with clean engine oil before pressing the impeller on the pump shaft.
During assembly, pump shaft must be flush with the face of the impeller within 0.15 mm (0.006 inch).
4 1 9S-8007 Plug Torque to 8 1 N m (71 9 lb in).
5 1 235-4645 Lip Type Seal During assembly, Install the lip type seal dry into the pump housing. Install the lip type seal within 2 minutes after the lip type seal has been removed from the shipping tube. Use the correct installation tool. Do not use hand pressure to install water pump seal.
6 1 4N-1230 O-Ring Seal Lubrie with P-80 or 5P-3975 Rubber Lubricant.
C - - Distance between the impeller and the pump housing is 14.3 mm (0.56 inch).
