Removal Procedure
Table 1
Required Tools
Tool Part Number Part Description Qty
A - Guide Bolt
5/8 - 18 NF by 7 inch 1
Keep all parts clean from contaminants.Contaminants may cause rapid wear and shortened component life.
Illustration 1 g01255615
Remove one of bolt (1). Install Tooling (A) .
Illustration 2 g01255608
Remove remaining bolts (1). Remove plate (2). Remove pulley (3). Remove vibration damper (4) from adapter (5) .
Remove adapter (5) from the crankshaft.
Remove Tooling (A) from the crankshaft.Installation Procedure
Table 2
Required Tools
Tool Part Number Part Description Qty
A - Guide Bolt
5/8 - 18 NF by 7 inch 1
B 4C-5593 Anti-Seize Compound -
Keep all parts clean from contaminants.Contaminants may cause rapid wear and shortened component life.
Thoroughly inspect the viscous damper for signs of leakage or for signs of a dented (damaged) . Either of these conditions can cause the weight to make contact with the . This can affect the viscous damper's operation.
Illustration 3 g01255608
Install Tooling (A) in the crankshaft.
Install adapter (5) and vibration damper (4) on Tooling (A).
Install pulley (3) on Tooling (A) .
Install plate (2) on Tooling (A) .
Apply Tooling (B) to bolts (1). Install bolts (1). Remove Tooling (A) and install the remaining bolt (1) .
Part Numbers: 1231943, 1422633, 8C9127, 6J6736, 1400234, 8C9121, 6J7167, 1232048, 3G1259, 7Y4630, 1505885, 8C9128, 8J6070, 1231983, 1306056, 8C9129
Keywords: Hydraulic Cylinder Seal, Fits CAT Excavator Loader
Product Description:

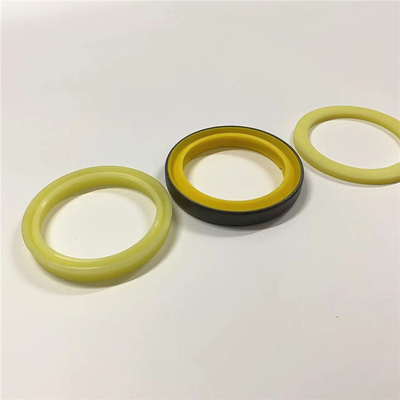

Introducing our high-quality Hydraulic Cylinder Seals, specifically designed to fit CAT excavators and loaders. These seals are compatible with several frequently used part numbers, including 1231943, 1422633, 8C9127, 6J6736, 1400234, 8C9121, 6J7167, 1232048, 3G1259, 7Y4630, 1505885, 8C9128, 8J6070, 1231983, 1306056, and 8C9129. Engineered to deliver reliable sealing solutions, these seals ensure optimal performance for the hydraulic cylinders in CAT excavators and loaders.
Key Features:
- Reliable Sealing Performance: Our Hydraulic Cylinder Seals provide reliable sealing performance, effectively preventing leaks and maintaining optimal hydraulic system efficiency for CAT excavators and loaders.
- Wide Compatibility: Designed to fit a wide range of CAT excavator and loader models, these seals offer versatile compatibility, ensuring a proper fit for various equipment.
- Durable and Long-lasting: Crafted with high-quality materials, these seals are built to withstand demanding operating conditions, ensuring durability and long service life.
- Improved Operational Efficiency: The advanced design and sealing technology of these seals contribute to improved hydraulic system efficiency, enhancing the overall productivity of CAT excavators and loaders.
- Easy Installation and Replacement: These seals are designed for easy installation and replacement, minimizing downtime and maximizing operational efficiency.
Technical Specifications:
- Material Composition: [Specify the material details]
- Compatibility: Designed to fit CAT excavator and loader models.
Packaging:
Our Hydraulic Cylinder Seals are carefully packaged to ensure safe transportation and storage, providing protection against potential damage or contamination.
