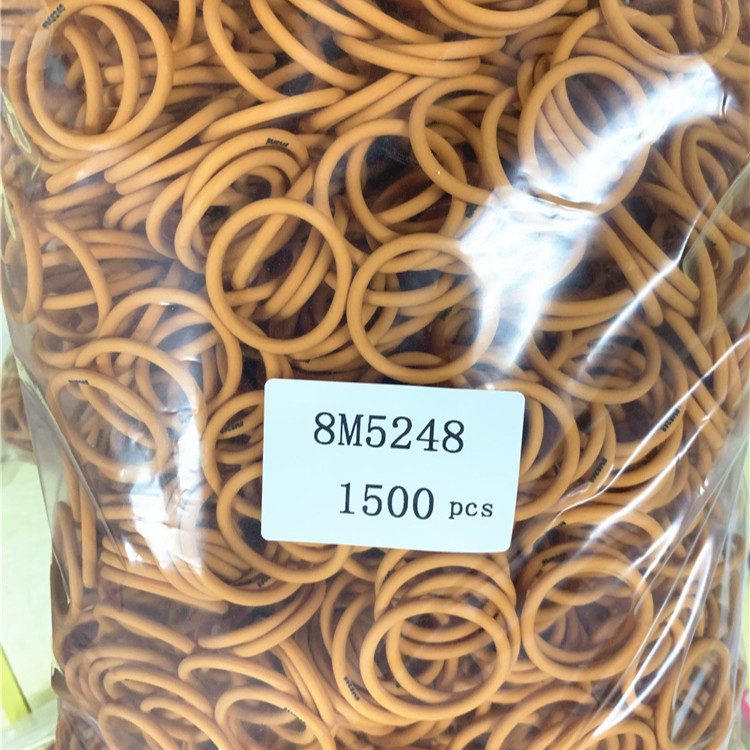

8M4433 8M5254 8M4987 Ring Oil Seal 8M5248 3S5496 8M4432 8M4445

ARTICULATED TRUCK 735 740 D250B D250D D250E D250E II D25C D25D D300B D300E D300E II D30C D350C D350E D350E II D35C D400 D400E D400E II D44B D550B
CHALLENGER 65
EJECTOR TRUCK 740 D400E II
ENGINE - MACHINE 3304
EXCAVATOR 215 215B 235B 235C 235D 330 L 330B 350 E300B
GAS ENGINE G3304 G3306
GEN SET ENGINE 3304 3304B 3306 3306B
GENERATOR SET 3304B 3306B
INDUSTRIAL ENGINE 3304 3306 3306B D346 D348
LANDFILL COMPACTOR 816 816F 826C 826G 826G II 836 836G
LOAD HAUL DUMP R1300 R1300G R1600 R1600G R1600H R1700 II R1700G R2900 R2900G R3000H
MARINE ENGINE 3304 3304B 3306 3306B D334 D336
MOTOR GRADER 120G 12G 12H 12H ES 12H NA 130G 140B 140G 140H 140H ES 140H NA 14E 160H 160H ES 160H NA 24H
PETROLEUM ENGINE C9
PETROLEUM PACKAGE TH35-C11I TH35-C13I TH35-C13T TH35-C15I TH35-C15T
PETROLEUM TRANSMISSION TH31-E61 TH35-E81
PIPELAYER 561C 561D 561M 561N 572G 572R 572R II 578 583K 583R 583T 587R 587T 589 594 594H PL83 PL87
QUARRY TRUCK 771C 771D 775B 775D
RECLAIMER MIXER RM-350B RM-500
ROAD RECLAIMER RM-350B
SOIL COMPACTOR 815 815B 815F 825G 825G II
STABILIZER MIXER SM-350
TRACK LOADER 941 951B 955K 963 973 977K 983 983B
TRACK SKIDDER 517 527 D4HTSK II D4HTSK III D5HTSK II
TRACK-TYPE TRACTOR 30/30 D10 D10N D10R D10T D11N D11R D11T D4D D4E D4E SR D4H D4H XL D5 D5B D5E D5H D5H XL D5M D5N D6C D6D D6E SR D6G D6G SR D6G2 LGP D6G2 XL D6H D6H II D6H XL D6H XR D6M D6N D6R D6R II D6R III D6R STD D6T D6T LGP D6T LGPPAT D6T XL D7F D7G D7H D7R D7R II D7R XR D8H D8K D8L D8N D8R D8R II D8T D9G D9H D9L D9N D9R D9T DEUCE
TRACTOR 772B 776
TRUCK 69D 769 769C 769D 773B 773D 773E 775D 775E 777
TRUCK ENGINE 1673C 1674 1676 3306 3306B
UNDERGROUND ART TRUCK AD30 AD40 AD45 AD55 AE40 AE40 II
WHEEL DOZER 814 814B 814F 824 824C 824G 824G II 834B 834G 844 844H 844K 854G 854K
WHEEL LOADER 920 930 930R 936 936F 950 950B 950B/950E 950F 950F II 960F 966C 966D 966F 966F II 966G 970F 972G 980C 980F 980F II 980G 980G II 988B 988F 988F II 988G 990 990 II 990H 990K 992 992C 992D 992G 992K 993K 994 994D 994F 994H G936
WHEEL SCRAPER 615C 621E 623E 623F 627 627B 627E 627G 637 637B 637D 637E 637G 639D 657B 657E 657G
WHEEL TRACTOR 611 613C 613C II 615 621 621B 621E 621F 621G 623 623B 623E 623G 627 627B 627E 627F 627G 631C 631D 631E 631G 633D 633E II 637 637D 637E 637G 639D 641B 650B 651E 657B 657E 666B
WHEEL TRACTOR-SCRAPER 613G



Flash Programming - A method of loading a flash file into the Electronic Control Module (ECM)The electronic service tool can be utilized to program a flash file into the ECM. The flash programming transfers the flash file from the PC to the ECM.Flash Programming a Flash File
Obtain the part number for the new flash file. Note: If the part number for the flash file is not available, use the "Flash File Search" tool on the Service Technician Workbench (STW). Alternatively, use the "Flash Software Files" feature on SIS Web.Note: The engine serial number is required in order to search for the part number of the flash file.
Connect the electronic service tool to the diagnostic connector.
Turn the keyswitch to the ON position. Do not start the engine.
Select "WinFlash" from the "Utilities" menu on the electronic service tool. Note: If "WinFlash" will not communie with the ECM, refer to Troubleshooting, "Electronic Service Tool Will Not Communie with ECM".
Flash program the flash file into the ECM.
Select the engine ECM under the "Detected ECMs".
Press the "Browse" button in order to select the part number of the flash file that will be programmed into the ECM.
When the correct flash file is selected, press the "Open" button.
Verify that the "File Values" match the appliion. If the "File Values" do not match the appliion, search for the correct flash file.
When the correct flash file is selected, press the "Begin Flash" button.
The electronic service tool will indie when flash programming has been successfully completed.
Start the engine and check for proper operation.
Access the "Configuration" screen under the "Service" menu in order to determine the parameters that require programming. Look under the "Tattletale" column. All of the parameters should have a tattletale of 1 or more. If a parameter has a tattletale of 0, program that parameter. "WinFlash" Error Messages
If any error messages are received during flash programming, click on the "Cancel" button in order to stop the process. Access the information about the "ECM Summary" under the "Information" menu. Ensure that the correct flash file has been selected for the engine.
