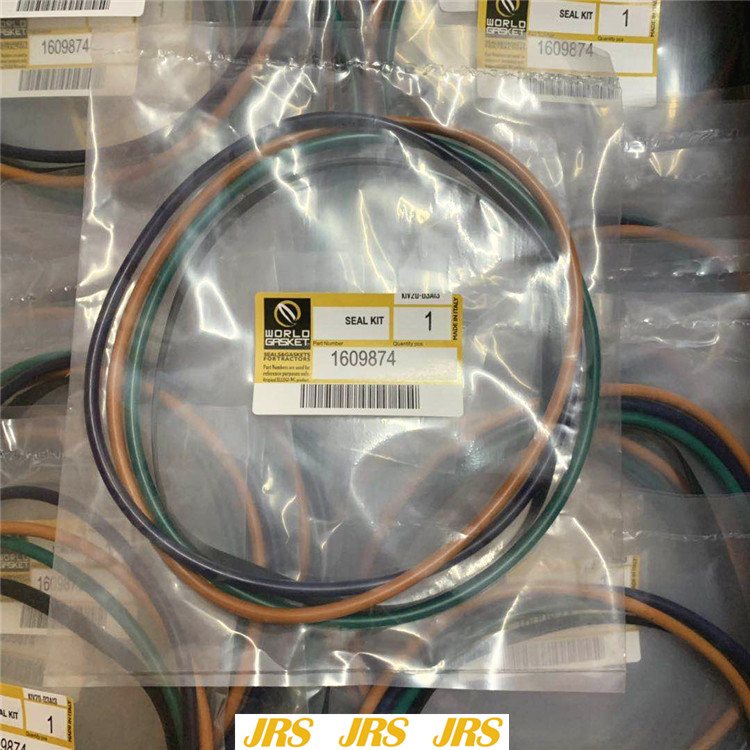

1609874 5P8768 1609874 Breaker Seal Kit 1670024 3483295 1043560

Related part:

1609874 SEAL KT-YM 3863048 CL

Compatible equipment models: 1609874:

ARTICULATED TRUCK 735 735B 740 D350E D350E II D400 D400E D400E II
COLD PLANER PM-465 PM-565 PM-565B PR-1000 PR-450C
EJECTOR TRUCK 740
EXCAVATOR 365C 365C L 365C L MH 375 375 L
FRONT SHOVEL 5080
GAS ENGINE G3406 G3408 G3412
GEN SET ENGINE 3406B 3406C 3408 3412 3412C
GENERATOR SET 3406C 3408C 3412C
INDUSTRIAL ENGINE 3406 3406B 3406C 3406E 3408 3408C 3408E 3412 3412C 3412E C15
LANDFILL COMPACTOR 826C 826G 826H 836
LOAD HAUL DUMP R2900G
MARINE ENGINE 3406B 3406C 3406E 3408 3408B 3408C 3412 3412C 3412E
MOBILE HYD POWER UNIT 365C L
MOTOR GRADER 16G 16H NA 24H
PETROLEUM PACKAGE CX31-C15I
PIPELAYER 578 583T 589 PL83
POWER MODULE PM3412
QUARRY TRUCK 771C 771D 775B 775D
ROAD RECLAIMER RR-250 RR-250B
SOIL COMPACTOR 825G 825H
SOIL STABILIZER SS-250
STABILIZER MIXER SM-350
TRACK-TYPE TRACTOR D10N D10R D10T D8N D8R D8R II D8T D9R
TRUCK 769C 769D 773B 773D 773F 775D 775F
TRUCK ENGINE 3406B 3406C 3406E 3408 C-10 C-12 C-15 C15
WHEEL DOZER 814B 824C 824G 824H 834B 844
WHEEL LOADER 980C 980F 980G 980G II 980H 988B 988F 988F II 990 990 II 990H 992C 992D
WHEEL SCRAPER 623E 623F 637E 651E 657E
WHEEL TRACTOR 621F 621G 623G 627B 627F 627G 631E 633E II 637E 651E 657E

Installation Procedure
Table 1
Required Tools
Tool Part Number Part Description Qty
A 2P-8260 Cylinder Liner Installer 1
B 8T-0455 Liner Projection Tool Group 1
C 8T-9011 Component Cleaner -
D 6V-1541 Quick Cure Primer -
E 4C-9506 Retaining Compound -
Keep all parts clean from contaminants.Contaminants may cause rapid wear and shortened component life.
Clean the cylinder block bore with Tooling (C) before you install the cylinder liner.
Apply clean engine oil to the cylinder block bore. Do not apply the clean engine oil to the top 50.0 mm (2.00 inch) of the cylinder block bore.
Illustration 1 g00953356
Use Tooling (A) and install cylinder liner (1).
Press the cylinder liner into the cylinder block within 50.0 mm (2.00 inch) of the top of the cylinder block.
Apply Tooling (D) to the exposed area of cylinder liner (1). Also apply Tooling (E) to the exposed area of cylinder liner (1).
Wipe off any excess Tooling (E) from cylinder liner (1).
Press cylinder liner (1) into the cylinder block until the top of the cylinder liner flange is flush with the top of the cylinder block.
Illustration 2 g00635363
Use Tooling (B) to check that the top of the cylinder liner flange is 0.10 mm (0.004 inch) above the cylinder block or below the cylinder block. End By:
Install the pistons and connecting rods. Refer to Disassembly and Assembly, "Piston and Connecting Rods - Install".
Install the cylinder head. Refer to Disassembly and Assembly, "Cylinder Head - Install".
