Product Details:
|
| Material: | Nbr, Ptfe, Pu | Color: | White, Black , Blue |
|---|---|---|---|
| Package: | Bag Or Box | Warranty: | 3 Month |
| Style: | Mechanical Seal | Appliion: | Heavy Machine |
| Highlight: | E120B Hydraulic Breaker Seal Kit,320 Breaker Seal Kit,E120B Center Join Seal Kit |
||

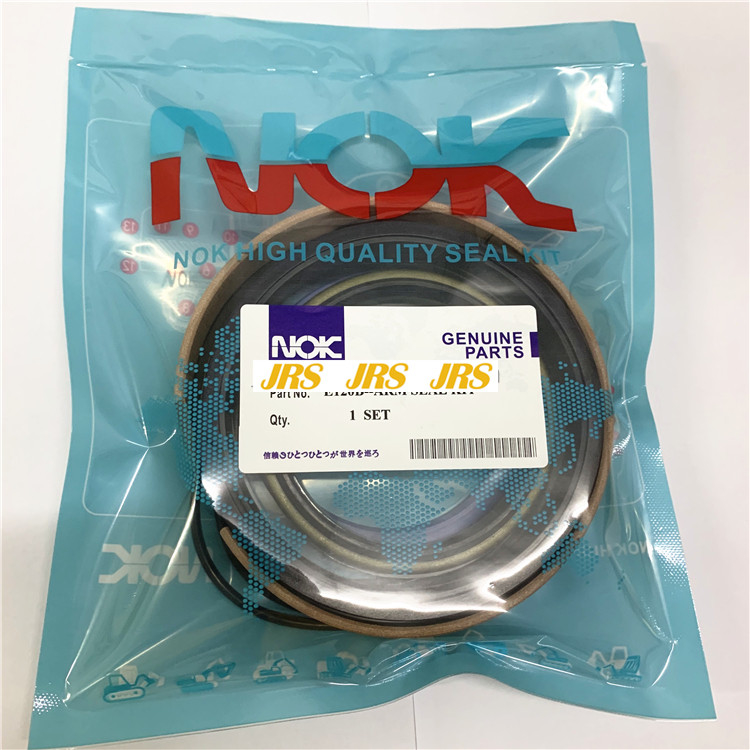

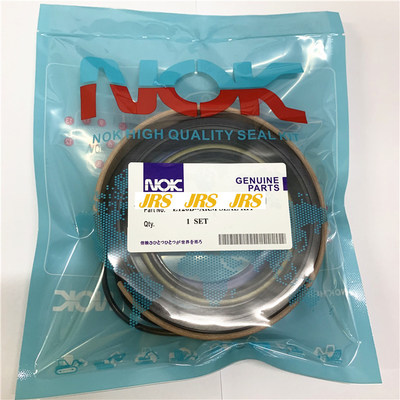

E120B 320 330 Arm Boom Bucket Breaker Seal Kit For Center Join
E120B 320 330 Arm Boom Bucket Cylinder Seal Kit Control Valve Seal Kit Center Join Seal Kit FOR
| 305 312B 315 E200B 320D/C 324D 325C/D 329D 330B | |
| 330C 360 306D | |
| Hyundai | R60-7 R80-8 R130-7 R140-7 R170 R200-1 R200-3 R200-5 R210 R210-5 R210-7 R210-9 R215-7 R225-7 R225-9 R220-5 R250-7 R250-9 R260-7 R290 |
| R290-3 R300-5 R300-7 R320-7 R320-9 R375-7 R450 R450-5 R450-7 | |
| Kobelco | SK60 SK60-6 SK75 SK100-3 SK100-5 SK120 SK120-3 SK130 SK160 SK200-7 SK200-3 SK200-8 SK200-6 SK210-6 SK220-1 SK210-8 SK220-3 SK220-5 |
| SK230-6 SK230-8 SK250-8 SK250-6 SK300-3 SK310-3 SK330-6 SK350-8 | |
| EC | EC55 EC140 EC140B EC210 EC210BLC EC240 EC240BLC EC290 EC290BLC |
| EC340 EC340BLC EC360 EC360BLC | |
| Doosan / Daewoo | DH60-7 DH80-7 DH130 DH150 DH150-7 DH200-5 DH215-7 DH215-9 DH220-5 DH220-2 DH220-3 DH225-7 DH250-7 DH280-3 DH280 DH300 DH300-5 DH300-7 |
| DH330-3 DH420LC-7 DX225 DX300 Solar175 Solar220lc Solar300 Solar340 | |
| Sumitomo | SH60 SH75 SH100 SH120 SH120-6 SH130 SH160 SH200 SH200A3 SH220 SH260 SH280 SH300 SH340 SH430 SH450 |
| S280 S280FA S280F2 S281 S265F2 S340 | |
| Kato | HD250 HD300 HD307 HD400 HD450 HD550 HD550-3 HD700 HD700-5 HD700-7 HD700-2 HD770 HD800-7 |
| HD800SD-5 HD820-2 HD820 HD850 HD880-1 HD850 HDHD900-7 | |
| Other brands | John Deere 200C John Deere 230LC John Deere 240D John Deere 330C bob325 |
| JCB160 JCB180 JCB220 JCB330 JCB360 CLG200 LIUGONG922 Sunward60 Sunward70 | |
| TM02 TM04 TM05 TM06 TM07 TM09 TM10 TM18 TM22 GM06 GM08 | |
| NOTE: not all the models are listed here, if you need more details ,please contact us. |
