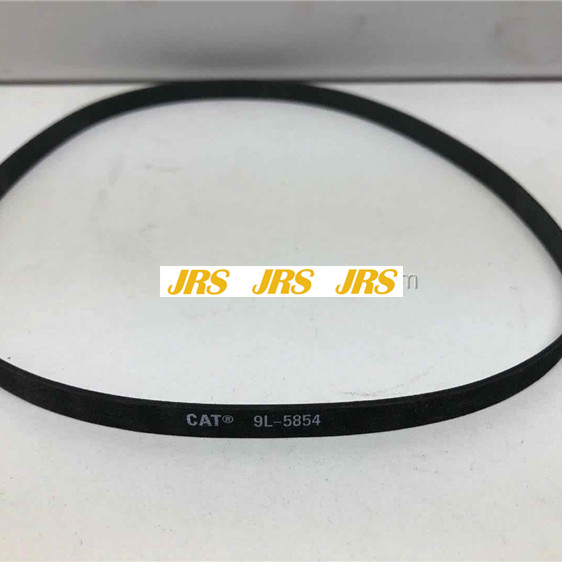

9l5854 2w6134 4565581 1670024 2588117

ARTICULATED TRUCK 735 735B 740 740B D350E D350E II D400 D400E D400E II
CHALLENGER MTC835
COLD PLANER PM-200 PM-201 PM-465 PM-565 PM-565B PR-1000 PR-450 PR-450C PR-750B
EJECTOR TRUCK 740 740B D400E II
EXCAVATOR 235 245 245B 245D 365C 365C L 365C L MH 374D L 374F L 375 375 L 385B 385C 385C FS 385C L 385C L MH 390D 390D L 390F L
FRONT SHOVEL 385C 5080 5090B
GAS ENGINE CG137-08 CG137-12 G3304 G3406 G3408 G3408B G3408C G3412 G343
GEN SET ENGINE 3406B 3406C 3406E 3408 3412 3412C 3456 G3412C
GENERATOR SET 3406C 3406E 3408C 3412 3412C 3456 C15 C15 I6 C18 C18 I6 C27 C32 G3406 G3412
INDUSTRIAL ENGINE 3304 3306 3406 3406B 3406C 3406E 3408 3408C 3408E 3412 3412C 3412E 3456 C-15 C-16 C15 C18 C27 C32 D343 D346 D348 D349
LANDFILL COMPACTOR 826C 826G 826G II 826H 826K 836 836G 836H 836K
LOAD HAUL DUMP R2900 R2900G R3000H
MARINE AUXILIARY C32
MARINE ENGINE 3304 3306 3406 3406B 3406C 3406E 3408 3408B 3408C 3412 3412C 3412D 3412E C15 C18 C30 C32 D343 D346 D348 D349
MINING EXCAVATOR 5110B
MOBILE HYD POWER UNIT 365C L 385C 385C L
MOTOR GRADER 120B 120G 140B 140G 16G 16H NA 24H 24M
PETROLEUM ENGINE 3412E C-15 C15 C18 C27 C32
PETROLEUM GEN SET C15 C18 C27 C32
PETROLEUM PACKAGE CX31-C15I CX31-C18I CX35-C18I TH35-C15I TH35-C15T
PETROLEUM TRANSMISSION TH48-E70
PIPELAYER 572G 578 583R 583T 587R 587T 589 PL83 PL87
POWER MODULE C18 C32 PM3412 PM3456
PUMPER HT400 SCT673 SPS342 SPT342
QUARRY TRUCK 771C 771D 775B 775D
RECLAIMER MIXER RM-250C RM-350B RM-500
ROAD RECLAIMER RM-350B RR-250 RR-250B
SOIL COMPACTOR 825G 825G II 825H 825K
SOIL STABILIZER SS-250
STABILIZER MIXER SM-350
TRACK LOADER 941 951B 955L 963 983
TRACK-TYPE TRACTOR D10 D10N D10R D10T D10T2 D11R D11T D4D D5 D6C D6D D7F D7G D8L D8N D8R D8R II D8T D9L D9N D9R D9T
TRACTOR 768C 772
TRUCK 69D 769 769C 769D 770 770G 770G OEM 772 772G 772G OEM 773B 773D 773E 773F 773G 773G LRC 773G OEM 775D 775E 775F 775G 775G LRC 775G OEM 777 777C 777D 777F 777G
TRUCK ENGINE 1673C 1674 1693 3406 3406B 3406C 3406E 3408 C-10 C-15 C-16 C-18 C15 C16 C18
UNDERGROUND ART TRUCK AD30 AD40 AD45 AD45B AD55 AD55B AD60 AE40 AE40 II
VEHICULAR ENGINE D346 D348 D349
WHEEL DOZER 814B 824B 824C 824G 824G II 824H 824K 834 834B 834G 834H 834K 844 844H 844K 854K
WHEEL LOADER 930 966C 980C 980F 980G 980G II 980H 986H 988B 988F 988F II 988G 988H 988K 990 990 II 990H 990K 992 992C 992D 992K 993K
WHEEL SCRAPER 623E 623F 627E 631G 637D 637E 651E 657B 657E 657G
WHEEL TRACTOR 621 621B 621E 621F 621G 623F 623G 627B 627E 627F 627G 631C 631D 631E 631G 633E II 637D 637E 637G 641B 651B 651E 657B 657E 657G



Engine:
G3508 (S/N: 9TG1-UP; WPM1-UP; WPN1-UP; DLR1-UP)
G3508B (S/N: RBK1-UP)
G3512 (S/N: 7NJ1-UP; CSP1-UP; WPP1-UP; WPR1-UP; GNS1-UP)
G3512B (S/N: JHH1-UP)
G3512E (S/N: SSR1-UP; NGS1-UP)
G3516 (S/N: 4EK1-UP; WPS1-UP; WPT1-UP; WPW1-UP; CSZ1-UP)
G3516B (S/N: ZBB1-UP; CSC1-UP; ZBC1-UP; CME1-UP; JEF1-UP; CEY1-UP; 7EZ1-UP)
G3516C (S/N: GSB1-UP; TJB1-UP; GZC1-UP; TJC1-UP; GZZ1-UP)
G3516E (S/N: GAS1-UP; SLY1-UP)
G3520 (S/N: HET1-UP; 5XW1-UP)
G3520B (S/N: CWD1-UP; GLF1-UP; GZP1-UP; GET1-UP; BGW1-UP)
G3520C (S/N: HEA1-UP; HEB1-UP; MAD1-UP; GZL1-UP; GZM1-UP; GZN1-UP; RLP1-UP; LGS1-UP; HAT1-UP)
G3520E (S/N: GZE1-UP; GZG1-UP; GZH1-UP; HAL1-UP; SXY1-UP)
Petroleum Engine:
G3520B (S/N: TPC1-UP)
Power Module:
PMG3516 (S/N: CFD1-UP; KAD1-UP)
Engine News SEBD9866, 30 April 2013, "A New Recommendation For Parameter And Request Rate Is Available For Certain G3520B Engines". Disregard the previous article. Engine effectivity has been added, refer to the article that follows.Description of Change: New recommendations for parameters and request rate is available to prevent the engine from having abnormal update rate events. Following these recommendations will keep the CAN bus from being overloaded and causing communiion issues with the Engine Control Module (ECM).Adaptable To: To prevent the engine from having abnormal update faults, use the following recommendations:
Staggering the Production Rates is recommended
Lower priority parameters should have longer Production Rates
Exceeding 30 parameters is not recommended
Additional parameters can be added if Production Rates are lengthenedSee Table 1 for an example of the parameter list and the request rate configuration.
Table 1
Parameter Request Rate Modbus Register
Auxiliary Driven Equipment Statues 5300 40002
Battery Voltage 60000 40003
Cooldown Duration 5300 40004
Engine Coolant Pump Pressure Status 5300 40007
Engine Coolant Temperature 3100 40008
Engine Mode Switch 5300 40009
Engine Oil Pressure 1300 40010
Engine Oil Temperature 3100 40011
Engine oil to Engine Coolant Differential Temperature 3100 40012
Engine Speed 1300 40014
Intake Manifold Pressure (Absolute) 1300 40015
Inlet Air Temperature 3000 40016
Unfiltered Engine Oil Pressure 1300 40019
Actual Engine Ignition Timing 3100 40020
Crank Terminate RPM 5300 40021
Oil filter Differential pressure 10000 40025
Detonation Level 1300 40027
Desired Engine Speed 5300 40028
Actual Air to Fuel Ratio 3100 40029
Engine Load Factor 1300 40030
Fuel Pressure (Absolute) 1300 40031
Fuel Temperature 3100 40032
Fuel Valve Differential Pressure 3100 40033
Fuel Valve Position 1300 40034
throttle Actuator Position Command 1300 40035
