Product Details:
|
| Material: | Rubber,PTFE,NBR,PU | Color: | Customer Required |
|---|---|---|---|
| Appliion: | Excavator | Type: | Side/Top/Box-Silence |
| Style: | O Ring | Delivery Time: | 3-15 Days |
| Highlight: | ZAX350 Hydraulic Cylinder Seal Kits,NBR Hydraulic Cylinder Seal Kits,ZAX350 Hydraulic Seal Repair |
||

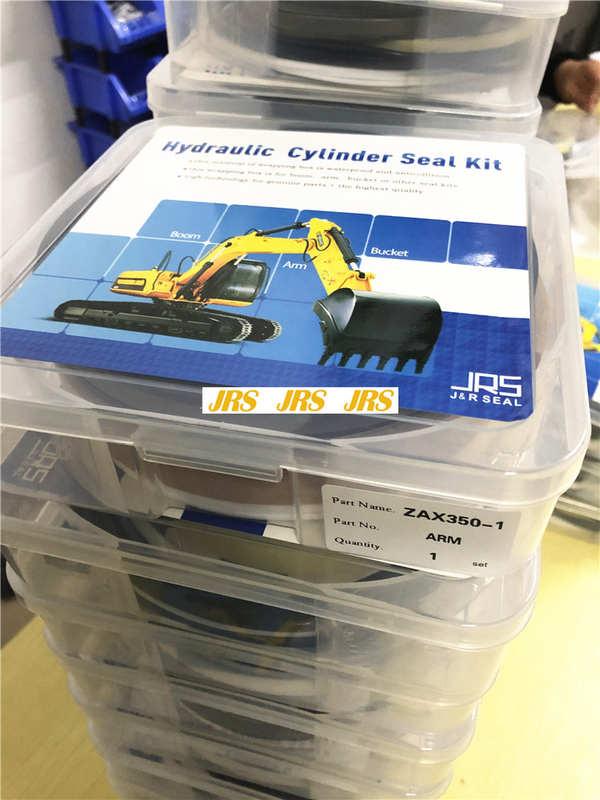

ZAX350 Hydraulic Cylinder Seal Kits Rubber PTFE NBR PU Material
ZAX350 Arm Boom Bucket Cylinder Seal Kit Control Valve Seal Kit FOR Hitachi Center Join Seal Kit
| Hitachi | ZX60 ZX70 ZX100-2 ZX120 ZX200 ZX210 ZX200-3 ZX230 ZX240-3 ZX250-3 ZX330 ZX330-3 |
| EX60 EX60-2 EX60-3 EX60-7 EX100-1 ex120-3 EX120-5 EX120-6 EX120-7 EX160 EX200-1 EX200-2 EX200-3 EX200-5 EX200-6 EX200-8 EX220-1 EX220-3 EX220-5 | |
| EX225-5 EX270 EX300-1 EX300-2 EX300-5 EX400 EX400-3 EX450 EX450-3 | |
| 305 312B 315 E200B 320D/C 324D 325C/D 329D 330B | |
| 330C 360 306D MS070 MS110 MS120 MS140 MS180 | |
| Kobelco | SK03 SK05 SK03 SK09 SK12 SK15 SK60 SK60-6 SK75 SK100-3 SK100-5 SK120 SK120-3 SK130 SK160 SK200-7 SK200-3 SK200-8 SK200-6 SK210-6 SK220-1 SK210-8 SK220-3 SK220-5 |
| SK230-6 SK230-8 SK250-8 SK250-6 SK300-3 SK310-3 SK330-6 SK350-8 | |
| Sumitomo | SH60 SH75 SH100 SH120 SH120-6 SH130 SH160 SH200 SH200A3 SH220 SH260 SH280 SH300 SH340 SH430 SH450 |
| S280 S280FA S280F2 S281 S265F2 S340 | |
| Kato | HD250 HD300 HD307 HD400 HD450 HD550 HD550-3 HD700 HD700-5 HD700-7 HD700-2 HD770 HD800-7 |
| HD800SD-5 HD820-2 HD820 HD850 HD880-1 HD850 HDHD900-7 | |
| Other brands | John Deere 200C John Deere 230LC John Deere 240D John Deere 330C bob325 |
| JCB160 JCB180 JCB220 JCB330 JCB360 CLG200 LIUGONG922 Sunward60 Sunward70 | |
| TM02 TM04 TM05 TM06 TM07 TM09 TM10 TM18 TM22 GM06 GM08 | |
| NOTE: not all the models are listed here, if you need more details ,please contact us. |
Illustration 2 g06255223The new turbine housing has extra material removed to allow more clearance for the wider v-band clamp.The new v-band clamp has both a thicker and wider v-band, along with a larger bolt as shown in Illustration 2. This clamp requires an increased torque compared with the former design.
Illustration 3 g06255225The length of the pilot of the new center housing, which supports the turbine housing, has been increased as shown in Illustration 3.Note: The new 397-6397 Clamp As (V-Band Turbine Housing) is not compatible, due to the width increase, with the former 198-9929 Turbine Housing.New Turbine Housing V-Band Clamp Torque Procedure
Note: The v-band clamp is considered a one time use only component and should be replaced if needed.Note: Do not retighten the v-band clamp after the engine has run.Note: Limit the run down speed of the nut for the v-band clamp to 60 rpm maximum to avoid galling the threads.
Apply Loctite® C5A Anti-Seize to the threads of the clamp.
Tighten the turbine housing v-band clamp to 20 N m (15 lb ft).
Tap lightly around the entire circumference of the clamp with a soft-faced hammer.
Tighten the clamp to 30 2 N m (22 1.5 lb ft).
Tap lightly around the entire circumference of the clamp with a soft-faced hammer.
Tighten the clamp to 30 2 N m (22 1.5 lb ft).
