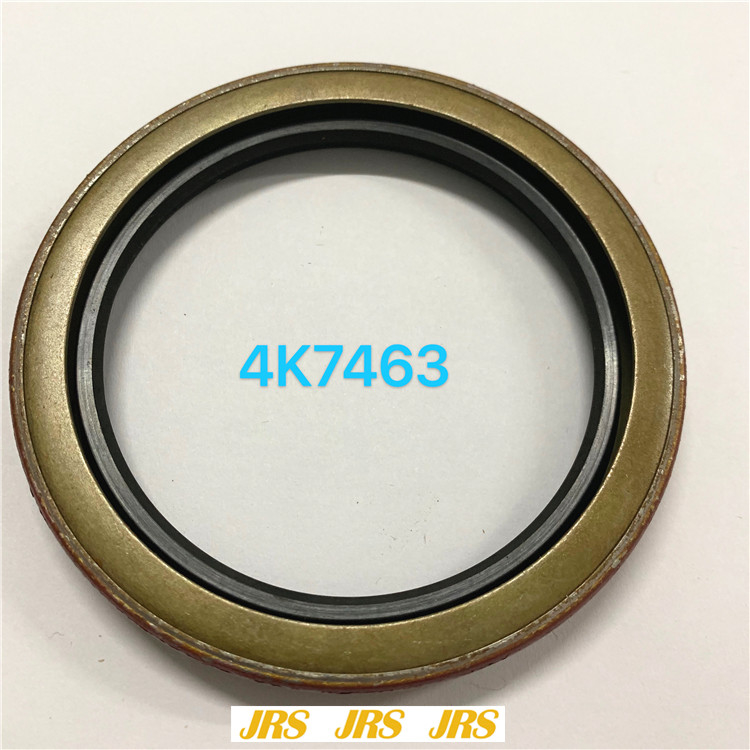

4K7463 Dust Wiper Seals For Engine Parts Lip Oil Seal

4K7463 Dust Wiper Seals For Engine Parts Lip Oil Seal
4K7463 Dust Wiper Seals For Engine Parts Lip Oil Seal

Large Image :  4K7463 Dust Wiper Seals For Engine Parts Lip Oil Seal

Product Details:
Place of Origin: CHINA
Brand Name: WG CTP SKF
Model Number: 4K7463
Payment & Shipping Terms:
Minimum Order Quantity: MOQ 5 SETS
Price: Negotiable
Packaging Details: PP Bag Inside,Carton Box Outside
Delivery Time: Within 3-15 days after getting your desposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000
Contact Now

4K7463 Dust Wiper Seals For Engine Parts Lip Oil Seal

Description
Material: NBR Standard Or Nonstandard: Standard
Color: Black Appliion: Hydraulic Loader
Delivery Time: 3-15 Days Package: Bag
Highlight:

4K7463 Dust Wiper Seals

,

4K7463 Lip Oil Seal

,

4K7463

4K7463 Dust Wiper Seals For Engine Parts Lip Oil Seal



4K7463 SEAL-LIP TYPE parts 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2



Alternative (cross code) number:
CA4K7463
4K-7463
4K7463



Information:
AXIAL WIDTH 11.91 mm
BORE DIAMETER 0 mm
CONSTRUCTION TYPE SBI
MATERIAL Nitrile Rubber (NBR) - 75 Duro
SEAL OD 98.58 mm
SHAFT OD 76.2 mm


Compatible equipment models: 4K7463:

ARTICULATED TRUCK D35HP D400 D44B D550B
INDUSTRIAL TRACTOR HA771 HA871 TK371 TK381
LANDFILL COMPACTOR 816
LOAD HAUL DUMP R1700 II R1700G R2900 R2900G R3000H
MOTOR GRADER 120G 120H 120H ES 120H NA 120K 120K 2 120M 120M 2 12G 12H 12H ES 12H NA 12K 12M 12M 2 12M 3 12M 3 AWD 130G 135H 135H NA 140G 140H 140H ES 140H NA 140K 140K 2 140M 140M 2 140M 3 140M 3 AWD 143H 14G 14H 14H NA 14M 160G 160H 160H ES 160H NA 160K 160M 160M 2 160M 3 160M 3 AWD 163H 163H NA
SOIL COMPACTOR 815 825B
TRACK-TYPE TRACTOR D7F
WHEEL DOZER 814 824B 834
WHEEL FELLER BUNCHER 533 543 HA770 HA870 TK370 TK380
WHEEL LOADER 936 950 950B 950B/950E 966C 966D 988 988B 992 992C G936
WHEEL SCRAPER 615C 623E 623F 627E
WHEEL SKIDDER 518 518C 525B 525C 528 528B 530B 535B 535C 545 545C
WHEEL TRACTOR 611 613C 615 621 621B 621E 621F 621G 621H 623E 623G 623H 627B 627E 627F 627G 627H
WHEEL TRACTOR-SCRAPER 621K 623K 623K LRC 627K 627K LRC

4K7463 Dust Wiper Seals For Engine Parts Lip Oil Seal 0
Illustration 1 g02558079
Table 1
Specifiion for the 283-6414 Air Shutoff Gp and 185-1676 Air Shutoff Gp
Item Qty Part Specifiion Description
1 2 5N-3852 Bearing Distance of bearing installation below the surface of the elbow is 0.25 0.25 mm (0.010 0.010 inch).
The bore in the elbow for the bearings is 18.263 0.013 mm (0.7190 0.0005 inch).
2 1 4P-8021 Valve As The valve assembly is shown in the run (open) position. When the valve is closed, a 0.08 mm (0.003 inch) feeler gauge must not fit between the valve and the bore in the pipe at any point.
3 1 5N-2830 Shaft As Diameter of shaft is 15.800 0.025 mm (0.6221 0.0010 inch).
Bore in the bearing is 15.88 mm (0.625 inch).
4 1 5H-1190 Lip Type Seal Lightly lubrie the shaft with glycerin or approved equivalent.
5 1 3N-7848 Spring Length under test force is 22.9 mm (0.90 inch).
Test force is 4.4 N (1.0 lb)
Free length after test is 35.56 mm (1.400 inch)
6 1 5N-5129 Shaft As needed, adjust the shaft to change the spring tension until the hold in current consumption (draw) is less than 2 amp at shutdown.
Diameter of shaft is 9.60 0.03 mm (0.378 0.001 inch).
Bore in the bearing is 9.80 0.03 mm (0.386 0.001 inch).
7 1 108-2858 Spring Free length is 54.5 0.5 mm (2.15 0.02 inch)
8 1 5N-5664 Bracket As Bracket assembly must be adjusted so that the valve assembly is parallel to the pipe bore within 2 degrees in run position.
9 1 4N-3889 Shutoff Solenoid Voltage rating is 9.0 to 14.4 VDC.
Current consumption in pull-in windings at 14.4 VDC is 53.7 amp.
Current consumption in hold-in windings at 14.4 VDC is 1.22 amp.
Distance from the plunger face to the flange face after the solenoid has been energized is 8.0 0.5 mm (0.32 0.02 inch).
10 1 1W-9070 Diode The diode assembly is required to suppress the back voltage spike that is generated when the solenoid is turned off.

Tag:

3K5093 Dust Wiper Seals,

5I7660 Dust Wiper Seals,

3064 Dust Wiper Seals
