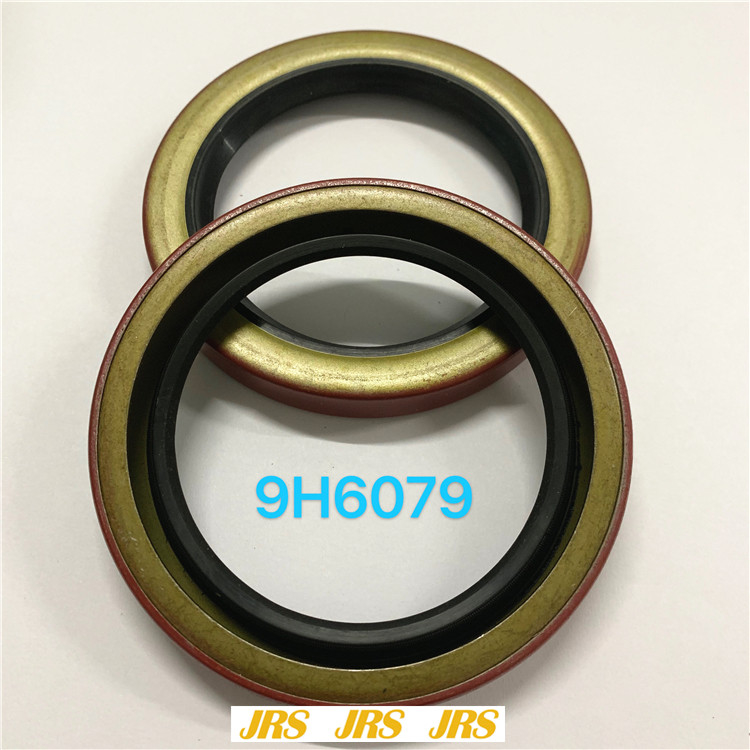

High Pressure 9H6079 Dust Wiper Seal For Engine Parts

High Pressure 9H6079 Dust Wiper Seal For Engine Parts
High Pressure 9H6079 Dust Wiper Seal For Engine Parts

Large Image :  High Pressure 9H6079 Dust Wiper Seal For Engine Parts

Product Details:
Place of Origin: CHINA
Brand Name: WG CTP SKF
Model Number: 9H6079
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: PP Bag Inside,Carton Box Outside
Delivery Time: Within 3-15 days after getting your desposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000
Contact Now

High Pressure 9H6079 Dust Wiper Seal For Engine Parts

Description
Material: NBR Standard Or Nonstandard: Standard
Color: Black Product Name: Dust WipeR Seals
Appliion: Hydraulic Loader Package Details: Bag
Highlight:

9H6079 Dust Wiper Seal

,

NBR Dust Wiper Seal

,

9H6079 High Pressure Piston Seals

High Pressure 9H6079 Dust Wiper Seal For Engine Parts



9h6079 Dust Wiper Seals For Engine Parts Lip Oil Seal



9H6079 SEAL-LIP TYPE parts 16, 3606, 3608, 3612, 3616, 518, 527, 528, 613, 613B, 613C, 65, 65C, 65E, 75C, 75D, 75E, 769C, 769D, 771C, 771D, 772, 773, 773B, 773D, 775B, 775D, 777, 777B, 785, 85C, 85D, 85E, 910, 910E, 916, 918F



Alternative (cross code) number:
CA9H6079
9H-6079
9H6079





Information:
AXIAL WIDTH 12.7 mm
BORE DIAMETER 0 mm
CONSTRUCTION TYPE SBI
MATERIAL Nitrile Rubber (NBR) - 75 Duro
SEAL OD 95.4 mm
SHAFT OD 69.85 mm


Compatible equipment models: 9H6079:

BACKHOE 931
CHALLENGER 65 65C 65E 75C 75D 75E 85C 85D 85E 95E
COMPACT WHEEL LOADER 910 910E
INDUSTRIAL ENGINE D398
INTEGRATED TOOLCARRIER IT12 IT12B IT14B IT18B IT18F IT24F
MARINE ENGINE 3606 3608 3612 3616 D379A
MOTOR GRADER 16
QUARRY TRUCK 771C 771D 775B
TRACK LOADER 931B 931C 933 935B 935C II 939
TRACK SKIDDER 527 D5HTSK II
TRACK-TYPE TRACTOR D3 D3B D3C D3C II D3C III D4B D4C II D4C III D4H D5C D5C III D5H D9E
TRACTOR 772
TRUCK 769C 769D 773 773B 773D 775D 777 777B 785
VIBRATORY COMPACTOR CP-433E CP-44 CP-533E CP-54B CP-56 CP-573E CP-64 CP-663E CP-68B CP-74B CP-76 CS-423E CS-433E CS-44 CS-531D CS-533D CS-533E CS-54 CS-54B CS-56 CS-563D CS-563E CS-56B CS-573D CS-583D CS-583E CS-64 CS-64B CS-663E CS-66B CS-683E CS-68B CS-74 CS-74B CS-76B CS-78B
WHEEL LOADER 916 918F 920 924F 930 930R
WHEEL SKIDDER 518 528
WHEEL TRACTOR 613 613B 613C

High Pressure 9H6079 Dust Wiper Seal For Engine Parts 0
REBE4335-00
04Sep2008
L120
Before/After
(Limited distribution)
PRODUCT SUPPORT PROGRAM FOR REPLACEMENT OF THE TOP PISTON RING IN CERTAIN G3516E ENGINES
1215 1124 1214 1100 PS42783
This Program must be administered either before or after failure.In either the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS42783" as the Part Numberand "7755" as the Group Number. If administered before failure, use "56" as the Warranty Claim Description Code and "T" as the SIMS Description code.If administered after failure, use "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your product analyst.
TERMINATION DATE
30Sep2009
PROBLEM
Some G3516E engines have shown cylinder liner polishing near the top of the cylinder. The cylinder polishing is not a failure mode. However, heavy cylinder polishing can lead to high oil consumption, increased blowby, and reduced cylinder compression. Oil consumption, blowby, and cylinder compression are determining factors for scheduling an in-frame overhaul. The cylinder liner polishing may lead to an in-frame overhaul interval shorter than specified in the Operation and Maintenance Manual (SEBU7681).
Another possible failure mode is that excessive oil consumption of a particular cylinder, may lead to detonation problems with that cylinder. The detonation is caused by the presence of oil during combustion or increased deposit levels.
AFFECTED PRODUCT
Model Identifiion Number
G3516E GAS00234, 239, 247-249, 253-255, 257-264
PARTS NEEDED
Qty
Part Number Description
16 2997609 KIT-GASKET(SCH)
16 3094046 RING-PSTN-TOP
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 32% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
It is required to replace the current top piston ring with the 309-4046 top piston ring on the listed engines before commissioning of the unit.
Refer to the appropriate service manuals as necessary.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-100 hrs,
0-12 mo 100.0% 0.0% 0.0% 100.0% 0.0% 0.0%
This is a 90.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.

Tag:

3K5093 Dust Wiper Seals,

5I7660 Dust Wiper Seals,

3064 Dust Wiper Seals
