Product Details:
|
| Size: | Custom Size | Color: | Black,brown,yellow |
|---|---|---|---|
| Material: | Rubber,NBR,FKM | Standard Or Nonstandard: | Hydraulic Pump Or Hydraulic Motors Oil Seals |
| Appliion: | Hydraulic Hammer | Product No.: | HB20G HB15G HB30G |
| Highlight: | HB30G Hydraulic Breaker Diaphragm,HB15G Hydraulic Breaker Diaphragm,HB20G |
||

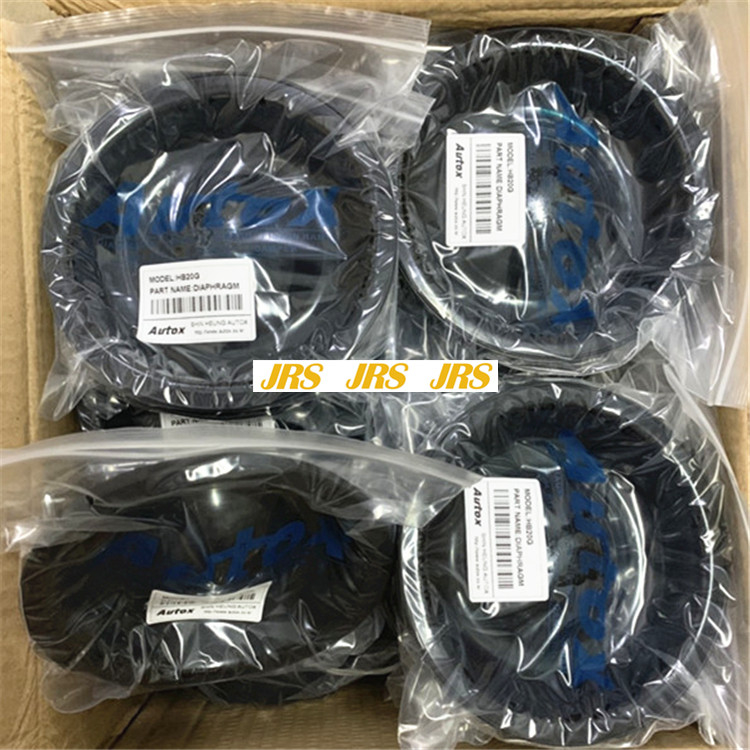

HB20G HB15G HB30G Hydraulic Breaker Diaphragm For Furukawa Replacement
HB20G HB15G HB30G Hydraulic Breaker Diaphragm for Furukawa 20G Accumulator Membrane Spare Parts Replacement Seals Set of
Various models
PART NAME SIZE SPECIFIION
DIAPHRAGM F-6=F-3=FURUKAWA300 ø110 * 18
DIAPHRAGM HB-3G/5G ø100 * 17
DIAPHRAGM HB-10G/F12 ø140*40
DIAPHRAGM HB-15G ø150 * 40
DIAPHRAGM HB-20G ø170 * 35
DIAPHRAGM HB-30G ø190 * 40
DIAPHRAGM HB-40G ø210 * 48
DIAPHRAGM HB-200 ø135 * 23
DIAPHRAGM HB-700 ø165 * 23
DIAPHRAGM HB-1200 / 1500 ø230 * 20
DIAPHRAGM SB-120/121/130 ø192 * 40
DIAPHRAGM SB-150/SB-151 ø205 * 37
DIAPHRAGM HM-110/HM-550 ø112 * 16
DIAPHRAGM MKB-1300/HM-901 ø140 * 60
DIAPHRAGM HM-600 / 800 / 901 ø140 * 60
DIAPHRAGM HM960/HM-1300 ø185 * 50
DIAPHRAGM HM-1500 / KRUPP-1000 / HM720 ø170 * 20
DIAPHRAGM UB-11 / TOKU-14/TNB13 ø144 * 65
DIAPHRAGM OUB 312 / UB-1600 ø170 * 70
DIAPHRAGM OUB 316 / 318 / UB-2500/KTB2500 ø200 * 90
DIAPHRAGM UB-5/TNB13A ø138 * 68
DIAPHRAGM UB-11-2 ø150 * 77
DIAPHRAGM RAMMER S-26 HIGH / D-50 ø95 * 20
DIAPHRAGM RAMMER S-25 HIGH / D-50 ø110*22
DIAPHRAGM RAMMER S-26 LOW / D-50 ø193 * 30
DIAPHRAGM THBB-1400(7624-10-0230)/THBB800 ø157 * 70
DIAPHRAGM THBB1600 168*80
DIAPHRAGM TOYO2000
DIAPHRAGM FURUKAWA 300/HD-300,500 ø110 * 18
DIAPHRAGM LM-500/YH-65/BRP130 ø115 * 21
DIAPHRAGM YH-45=CDH700=YH-50=CDH712 ø101 * 21
DIAPHRAGM TR210 ø165*40
| Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder | Seal Retainer |
| Socket Plug | Piston | Adapter | Valve | Valve Plug | Valve Sleeve |
| Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug | Front Head Pin |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush | Lower Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod | Hex Nut |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover | Socket Bolt |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal | Step Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt | Upper Cushion |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assembly |
