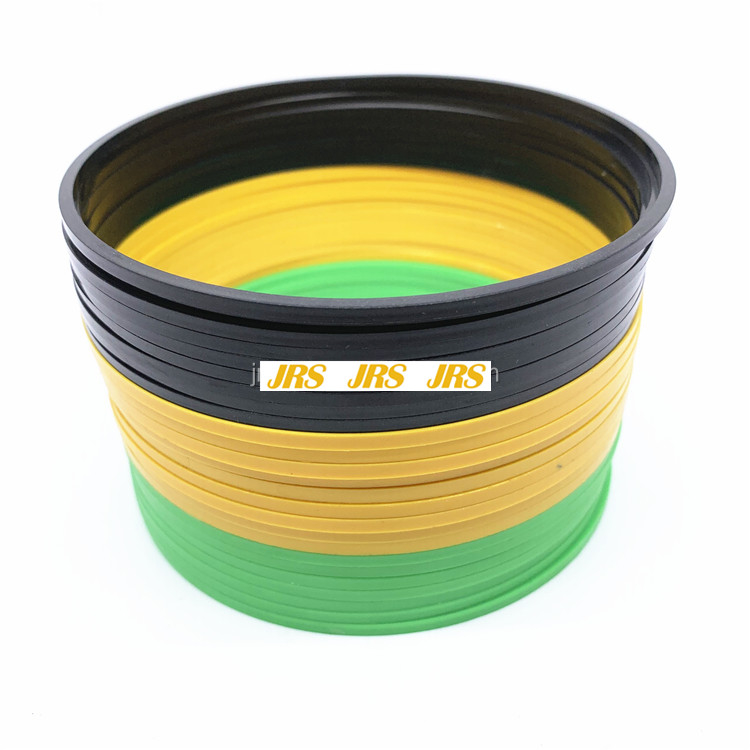

N4W Rubber Nylon Hydraulic seal backup ring N4W FOR SPGO
| Excavator Hydraulic Seal N4W | |
| N4W | 90*85*2.5 |
| N4W | 95*90*2.5 |
| N4W | 100*95*2.5 |
| N4W | 105*100*2.5 |
| N4W | 110*104*3 |
| N4W | 115*109*3 |
| N4W | 120*114*3 |
| N4W | 125*119*3 |
| N4W | 130*124*3 |
| N4W | 135*129*3 |
| N4W | 140*134*3 |
| N4W | 145*139*3 |
| N4W | 150*144*3 |
| N4W | 160*154*3 |
| N4W | 170*164*3 |
| N4W | 180*174*3 |
Illustration 1 g03329698
Illustration 2 g03329719
Section of A-A
Table 1
Specifiion for 352-8469 Rear Gear Gp and 352-8470 Rear Gear Gp
Item Qty Part Specifiion Description
1 2 147-3723 Idler Gear As Before installation, outside diameter of 152-7254 Bushing is 88.989 0.025 mm (3.5035 0.0010 inch).
2 1 151-1339 Idler Gear As Before installation, out side diameter of 152-7254 Bushing is 88.989 0.025 mm (3.5035 0.0010 inch).
3 2 6V-3349 O-Ring Seal Before assembly, lubrie the bore lightly with the lubricant that is being sealed .
4 2 271-7439 Pump Adapter After installation, in the pump adapter bore of 160-8184 Bushing is 64.721 0.053 mm (2.5480 0.0020 inch).
Installation depth is 3.5 0.5 mm (0.14 0.02 inch).
