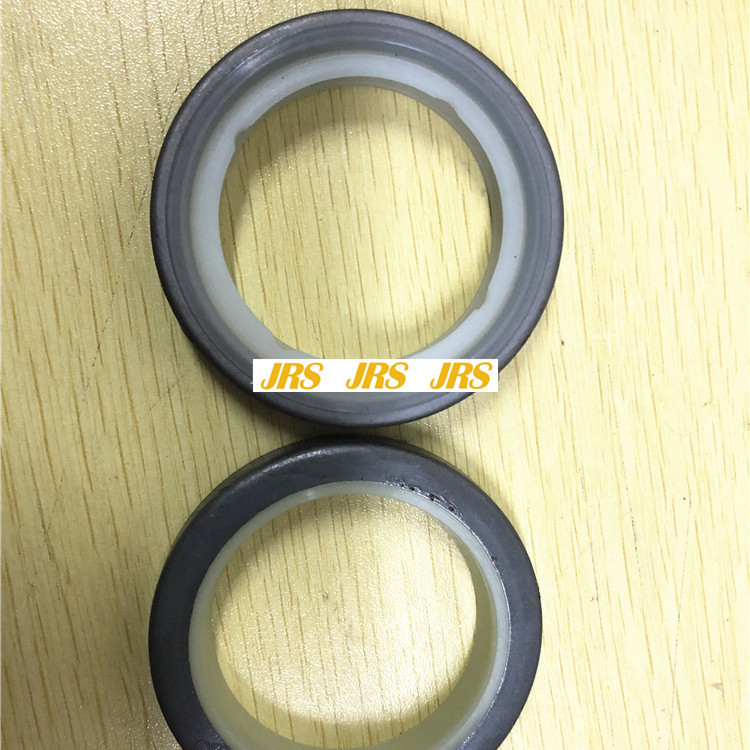

4J8979 4J8980 High Pressure Hydraulic Oil Seal Kit 1K6981 4J3515 1K6982

Compatible equipment models: 4J8980:

BACKHOE LOADER 428
COMPACT WHEEL LOADER 910
INTEGRATED TOOLCARRIER IT12
LOGGER 227
MOTOR GRADER 120G 12G 130G 140G 14G 160G 16G
TRACK LOADER 931B 931C 931C II
TRACK-TYPE TRACTOR D3 D3B D3C D4C D4C III D4H
TRACTOR 772
TRUCK 769
WHEEL LOADER 936 950 950B G936
WHEEL SKIDDER 508 518 528 528B
WHEEL TRACTOR 637E





Compatible equipment models: 1K6981:

BACKHOE 931
BACKHOE LOADER 426 428
BULLDOZER 3S 4A 4S 6A 814S 824S
CHALLENGER 65
COMPACT WHEEL LOADER 910
INTEGRATED TOOLCARRIER IT12 IT18B
LANDFILL COMPACTOR 816 826B
MOTOR GRADER 12G 130G 140G 14E 14G 16 160G 16G
PIPELAYER 561C 561D 571G 572G 583K 594 594H
RIPPER 933 951
SOIL COMPACTOR 815 815B 825C
TRACK LOADER 931B 931C 941 943 951B 953 953C 955C 955H 955K 955L 973 977D 977H 977K 977L
TRACK-TYPE TRACTOR D3B D4E D4E SR D4H D4H XL D5H D5M
WHEEL DOZER 814 814B
WHEEL LOADER 920 930 930R 950 966C 966D 980 980B
WHEEL SCRAPER 613 613C 633
WHEEL SKIDDER 518 528
WHEEL TRACTOR 613B 613C 657



4J3515 SEAL-LIP TYPE parts 14E, 14G, 508, 613C, 615, 615C, 621, 814S, 824B, 824C, 826C, 834, 834B, 916, 920, 930, 930R, 931, 931B, 941, 943, 951B, 963, 966C, 977H, 977K, 977L, 980, 980B, 980C, 988, 988B, D3B, D4H, D5H SEAL

Compatible equipment models: 4J3515:

BACKHOE 931
BULLDOZER 814S
LANDFILL COMPACTOR 826C
MOTOR GRADER 14E 14G
TRACK LOADER 931B 941 943 951B 963 977H 977K 977L
TRACK-TYPE TRACTOR D3B D4H D5H
WHEEL DOZER 824B 824C 834 834B
WHEEL LOADER 916 920 930 930R 966C 980 980B 980C 988 988B
WHEEL SCRAPER 613C 615 615C 621
WHEEL SKIDDER 508
WHEEL TRACTOR 615



1K6982 SEAL parts 12E, 140B, 14G, 16, 16G, 215, 215B, 227, 245, 245B, 44, 5S, 613, 613C, 615, 621, 621B, 621E, 623, 623B, 623E, 627B, 627E, 630B, 631C, 633, 633C, 633D, 637D, 637E, 639D, 651, 666, 6A, 6S, 776, 785, 7A,... SEAL

Compatible equipment models: 1K6982:

BULLDOZER 5S 6A 6S 7A 814S 824S 8A 9A
EXCAVATOR 215 215B 245 245B
HYDRAULIC CONTROL 44
INTEGRATED TOOLCARRIER IT18 IT18B IT28 IT28B
LANDFILL COMPACTOR 826C
LOGGER 227
MOTOR GRADER 12E 140B 14G 16 16G
RIPPER 951 977
TRACK LOADER 943 953 955C 955H 955K 955L 973 977D 977H 977K 983
TRACK-TYPE TRACTOR D4E D5B D5H D6D D6E D6E SR D6H D7F D7G D7H D9G
TRUCK 785
WAGON 776
WHEEL DOZER 814B 824C 834B
WHEEL LOADER 916 926 936 950 966C 980 980B 988 992 G926 G936
WHEEL SCRAPER 613 613C 615 621 621B 621E 623B 627B 630B 633 633D 639D
WHEEL TRACTOR 621B 621E 623 623E 627B 627E 631C 633C 637D 637E 651 666



1J3540 SEAL parts 215, 215B, 615, 615C, 621, 621B, 621E, 627B, 627E, 630B, 631B, 631D, 631E, 633, 633D, 637D, 637E, 641B, 651, 666, 789, 8S, 936, 963, 977K, 977L, 980C, 988, 9A, D7H, D8N, G936 SEAL
