Product Details:
|
| Material: | Pu | Color: | White |
|---|---|---|---|
| Package: | Bag Or Box | Appliion: | Hydraulic Loader |
| Deliverty Time: | 7-15 Days | Payment Terms: | T/T, Western Union |
| Highlight: | 5J 8225 Control Valve Repair Kit,5J 8350 Control Valve Repair Kit,5J0964 |
||

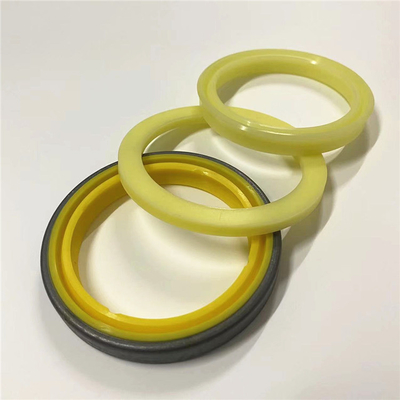

5J0964 5J8225 5J8275 5J8300 Control Valve Repair Kit 1672300 2892935
5J8150 5J8175 5J8200 5J0964 5J8225 5J8275 5J8300 5J8325 5J8350 5J8400 5J8375 1672300 2892935 1672200 2892848 1672317
5J8350 SEAL parts 10, 215, 215B, 215C, 215D, 225, 225D, 245, 245B, 5230, 641, 641B, 651E, 657, 657B, 657E, 666, 769, 824G, 8A, 8S, 8U, 931B, 966G, 972G, 972G II, 980C, 980F, 980F II, 980G, 983, 983B, 988B, 988F II, 992...
5J8325 SEAL parts 10, 215, 225, 225D, 227, 229, 229D, 651, 651B, 651E, 657B, 657E, 666, 836, 8D, 950B, 950B/950E, 950F, 950F II, 950G, 950G II, 960F, 962G, 966D, 966F, 966F II, 966G, 966G II, 970F, 972G, 972G II, 973, ...
5J8300 SEAL-U-CUP parts 215C, 215D, 225, 235, 235C, 345B II, 345B L, 446, 578, 589, 5S, 623E, 631D, 631E, 633E, 637E, 641B, 7A, 826G, 8D, 950, 950B, 950B/950E, 950F, 950F II, 950G, 953, 960F, 962G, 980, 980B, 980C, 980F, 980...
5J8238 SEAL-U-CUP parts 225, 428B, 769, 769C, 772, 777, 941, 951B
5J8375 SEAL parts 215, 225, 225D, 227, 229, 229D, 963, 980G, D11N, D11R
5J8400 SEAL parts 10S, 225, 227, 229D, 231D, 235, 235C, 578, 621, 621B, 621E, 627B, 627E, 988B, 988F, 988F II, 992C, 992D, D10, D10N, D11N, D11R, D9L, R1700 II, R1700G
Replacement For 8C9125 - SEAL ASSEM 1672200 5J3616 Fits (Fits )
Amhillras Replacement For 8C9125 - SEAL ASSEM 1672200 5J3616 Fits (Fits )
Illustration 1 g03120939
(Belt guard removed for visibility)
View of the belt and the belt tensioner on the front of the engine
(1) Belt tensioner Engine Belt Inspection
Inspect the belt for wear and for cracking. Replace the belt if the belt is not in good condition.Check the belt tension according to the information in the SpecifiionsManual, "Belt Tension Chart".Slippage of loose belts can reduce the efficiency of the driven components. Vibration of loose belts can cause unnecessary wear on the following components:
Belts
Pulleys
BearingsReplacement
Remove the belt guard.
Illustration 2 g03123244
Typical belt tensioner installation
(2) Square hole for ratchet
Insert a ratchet with a square drive into the square hole that is loed in the tensioner for the belt.
Rotate the tensioner counterclockwise in order to relieve tension on the belt. Remove the belt.
Install the new belt correctly, as shown. Be sure that the belt is fully seated on the pulleys. The correct tension will automatically be applied when the ratchet is removed.
install the belt guard. Adjusting Fan Drive Belts
Note: Prior to tensioning, check the threaded rod for lubricant. The threaded portion should be lubried.Note: For correct tension, follow the instructions on the OEM drawing for the specific radiator. The deflection distance and force will be listed. If the force is given in Newtons (N), then convert to kgf by dividing by 9.81.
Remove pulley guards.
Loosen the four fasteners on the idler system.
Using a belt tension tool, set the lower marker at the deflection distance required on the lower scale. Set the upper marker ring against the edge of the top tube.
Place the belt tension tool against the top of the belt at the center of the span. Apply a force at right angles to the belt. Apply enough force to deflect the belt to the point where the marker ring is level with the top of the adjacent belt.
Adjust the tension until the belt tension tool indies approximately 8.5 kgf.
To adjust the tension, adjust the locknut of the threaded adjusting rod.
Turn the nut clockwise to shorten the rod and increase belt tension. Turn the nut counterclockwise to lengthen the rod and decrease belt tension. Note: Do not over tension the belts.
Tighten the four fasteners on the idler system. Torque fasteners to 210 N m (155 lb ft).
Install pulley guards.
Run engine for 20 minutes. Recheck belt tension.
