Product Details:
|
| Material: | PU | Color: | Blue Or Customer Request |
|---|---|---|---|
| Appliion: | Heavy Machine | Style: | Mechanical Seal |
| Size: | Custom Size | Delivery Time: | 3-15 Days |
| Highlight: | 8T 8377 Center Joint Seal Kit,8T 8376 Center Joint Seal Kit,8T 8369 Hydraulic Excavator Parts |
||

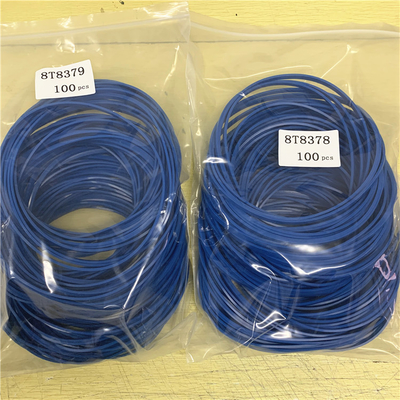

8T8369 8T8376 8T8377 Center Joint Seal Kit Hydraulic Excavator Parts
8T8369 8T8376 8T8377 8T8378 8T8379 8T8370 8T8371 8T8372 8T8373 8C4889 8C4890 8T8367 8C4891 8T8368 8T8374 8T8375 8T8380
| Hyundai | R60-7 R80-8 R130-7 R140-7 R170 R200-1 R200-3 R200-5 R210 R210-5 R210-7 R210-9 R215-7 R225-7 R225-9 R220-5 R250-7 R250-9 R260-7 R290 |
| R290-3 R300-5 R300-7 R320-7 R320-9 R375-7 R450 R450-5 R450-7 | |
| Kobelco | SK60 SK60-6 SK75 SK100-3 SK100-5 SK120 SK120-3 SK130 SK160 SK200-7 SK200-3 SK200-8 SK200-6 SK210-6 SK220-1 SK210-8 SK220-3 SK220-5 |
| SK230-6 SK230-8 SK250-8 SK250-6 SK300-3 SK310-3 SK330-6 SK350-8 | |
| EC | EC55 EC140 EC140B EC210 EC210BLC EC240 EC240BLC EC290 EC290BLC |
| EC340 EC340BLC EC360 EC360BLC | |
| Doosan / Daewoo | DH60-7 DH80-7 DH130 DH150 DH150-7 DH200-5 DH215-7 DH215-9 DH220-5 DH220-2 DH220-3 DH225-7 DH250-7 DH280-3 DH280 DH300 DH300-5 DH300-7 |
| DH330-3 DH420LC-7 DX225 DX300 Solar175 Solar220lc Solar300 Solar340 | |
| Sumitomo | SH60 SH75 SH100 SH120 SH120-6 SH130 SH160 SH200 SH200A3 SH220 SH260 SH280 SH300 SH340 SH430 SH450 |
| S280 S280FA S280F2 S281 S265F2 S340 | |
| Kato | HD250 HD300 HD307 HD400 HD450 HD550 HD550-3 HD700 HD700-5 HD700-7 HD700-2 HD770 HD800-7 |
| HD800SD-5 HD820-2 HD820 HD850 HD880-1 HD850 HDHD900-7 | |
| Other brands | John Deere 200C John Deere 230LC John Deere 240D John Deere 330C bob325 |
| JCB160 JCB180 JCB220 JCB330 JCB360 CLG200 LIUGONG922 Sunward60 Sunward70 | |
| TM02 TM04 TM05 TM06 TM07 TM09 TM10 TM18 TM22 GM06 GM08 | |
| NOTE: not all the models are listed here, if you need more details ,please contact us. |
Illustration 1 g00103936
Pressure setting ...1. 345 15 kPa (50 2 psi)Flow rate ... 132.5 0.8 L/min (35.0 0.2 US gpm)Back pressure ... 276 kPa (40 psi) (1) 5M-9548 Spring Length under test force ... 21.3 mm (.84 inch) Test force ... 4.4 0.4 N (1.00 .08 lb) Free length after test ... 34.0 mm (1.34 inch) Outside diameter ... 12.2 mm (.48 inch)
2.(2) Shims Thickness of one 5M-9624 Shim ... 0.25 mm (.010 inch) One 5M-9624 Shim will change the pressure approximately. ... 5 kPa (.7 psi) Thickness of one 5M-9623 Shim ... 0.90 mm (.035 inch) One 5M-9623 Shim will change the pressure approximately. ... 18 kPa (2.6 psi) (3) 8M-8627 Spring Color code ... white stripe Length under test force ... 53.6 mm
3.(2.11 inch) Test force ... 395 32 N (88.8 7.1 lb) Free length after test ... 78.7 mm (3.10 inch) Outside diameter ... 19.8 mm (.78 inch) (4) Torque for four bolts ... 48 7 N m (35 5 lb ft)
4J8980 SEAL-LIP TYPE parts 120G, 12G, 130G, 140G, 14G, 160G, 16G, 227, 428, 508, 518, 528, 528B, 637E, 769, 772, 910, 931B, 931C, 931C II, 936, 950, 950B, D3, D3B, D3C, D4C, D4C III, D4H, G936, IT12
Start By:
Remove the rocker arm and shaft. Refer to Disassembly and Assembly, "Rocker Arm and Shaft - Remove".
Keep all parts clean from contaminants.Contaminants may cause rapid wear and shortened component life.
Note: Place an identifiion mark on each of the components of the rocker shaft for installation purposes.
Illustration 1 g01259141
Personal injury can result from being struck by parts propelled by a released spring force.Make sure to wear all necessary protective equipment.Follow the recommended procedure and use all recommended tooling to release the spring force.
Remove dowel (2) from rocker shaft (1).
Remove end stand (7), exhaust rocker arm (6), intake rocker arm (5), stand (4), and spring (3) from rocker shaft (1).
1K6981 SEAL-LIP TYPE parts 12G, 130G, 140G, 14E, 14G, 16, 160G, 16G, 3S, 426, 428, 4A, 4S, 518, 528, 561C, 561D, 571G, 572G, 583K, 594, 594H, 613, 613B, 613C, 633, 65, 657, 6A, 814, 814B, 814S, 815, 815B, 816, 824S, 825C, 826B,..
