Product Details:
|
| Material: | NBR | Color: | Black |
|---|---|---|---|
| Package: | Bag | Appliion: | Hydraulic Loader |
| Delivery Time: | 3-15 Days | Payment Terms: | T/T, Western Union |
| Highlight: | 9T 6814 Control Valve Seal Kit,4V 4972 Control Valve Seal Kit,4V4972 |
||

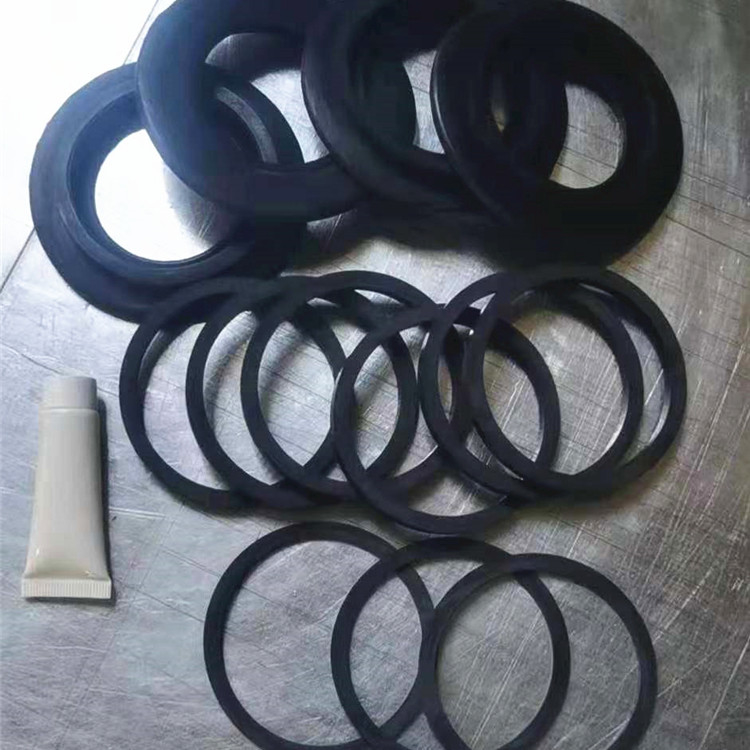

4V4972 9T 6814 Control Valve Seal Kit Hydraulic Loader Part
4V4972 4V-4972 4V 4972
9T6814 KIT-SPRING parts 916, IT18B KIT
Assembly Procedure
Table 1
Required Tools
Tool Part Number Part Description Qty
A 1P-1853 Pliers 1
Clean all parts and inspect all parts. If any parts are worn or damaged, use new parts for replacement.
Illustration 1 g00483828
Install valve spool (37) , spring (36) and guide (35) into manifold valve (6) .
Illustration 2 g00483826
Position the O-ring seal and cover (34) onto manifold valve (6) . Install two bolts (33) . Tighten the bolts to a torque of 30 4 N m (22 3 lb ft) .
Illustration 3 g00483825
Install screen (32) into valve body (3) .
Illustration 4 g00483824
Install stop (31) , spring (30) , slug (29) and spring (28) into valve body (3) . Install dowels (26) and (27) .Note: The bottom of dowel (26) should be 8.0 mm (.32 inch) below the outside bottom surface of valve body (3) . Dowel (26) extends into stop (31) .
Illustration 5 g00483823
Install ball (25) , spring (24) and retainer (23) into valve spool (14) . Use Tooling (A) and install ring (22) into valve spool (14) .
Illustration 6 g00483822
Install slug (21) into valve spool (14) .
Illustration 7 g00483792
Install spring (20) , spring (19) , retainer (18) and ring (17) into valve spool (16) .
Illustration 8 g00483781
Install valve spool (16) and spring (15) into valve body (3) .
Illustration 9 g00483772
Install valve spool (14) , spring (13) , spring (12) , spacers (11) and piston (10) into valve body (3) .
Illustration 10 g00483705
Position the O-ring seal and cover (9) onto valve body (3) . Install three bolts (8) . Tighten the bolts to a torque of 30 4 N m (22 3 lb ft) .
Illustration 11 g00483702
Position plate (7) onto manifold valve (6) and position valve body (3) onto plate (7) .
Illustration 12 g00483692
Position cover (5) onto valve body (3) and install 24 bolts (4) . Tighten the bolts to a torque of 30 4 N m (22 3 lb ft). Install speed control valve (2) and directional valve (1) into valve body (3) .End By: Install the transmission hydraulic control valve. Refer to Disassembly and Assembly, "Transmission Hydraulic Control Valve - Install". The information is in this manual.
